DIY Stall bars with accessories - file with construction details

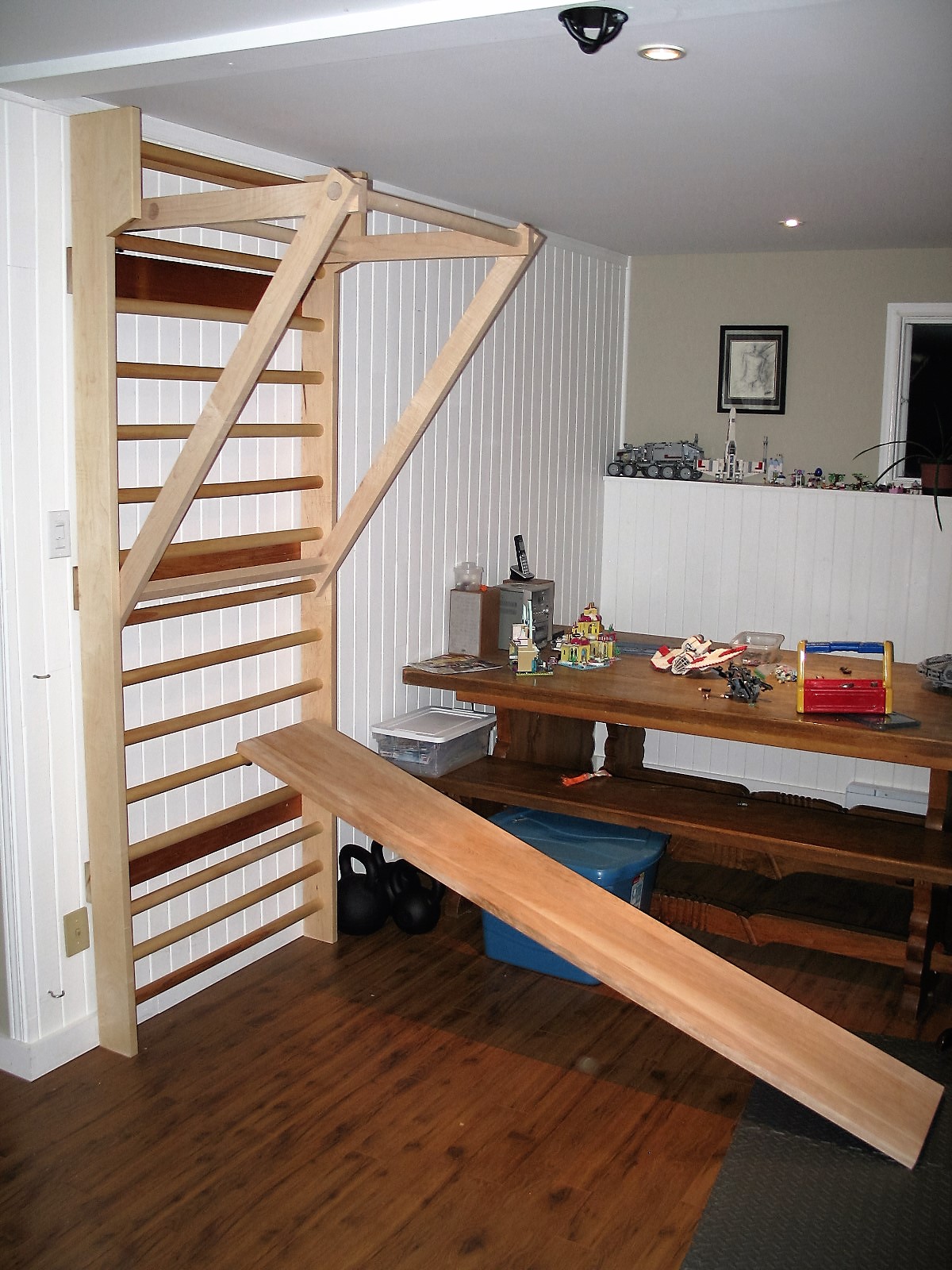

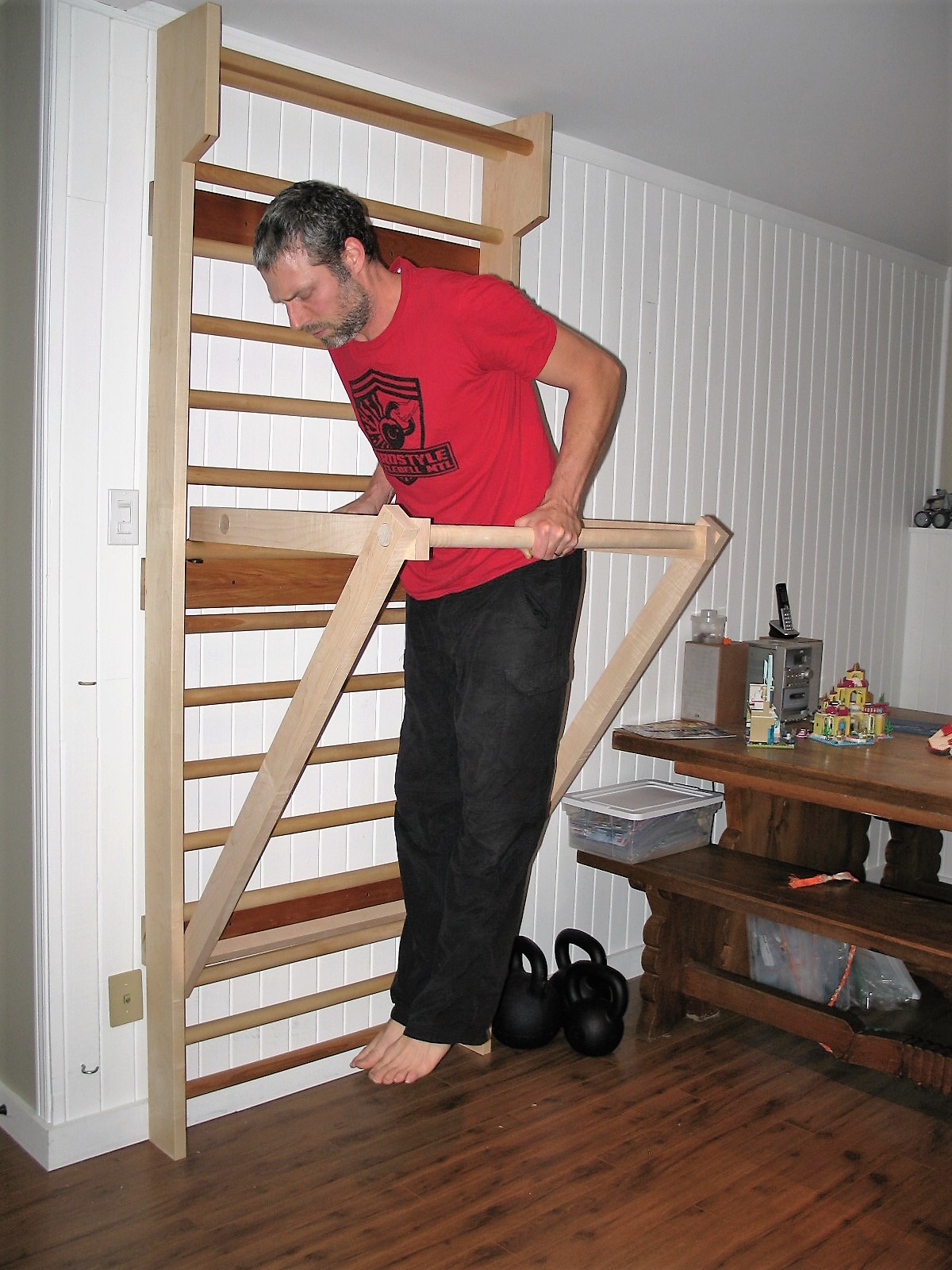

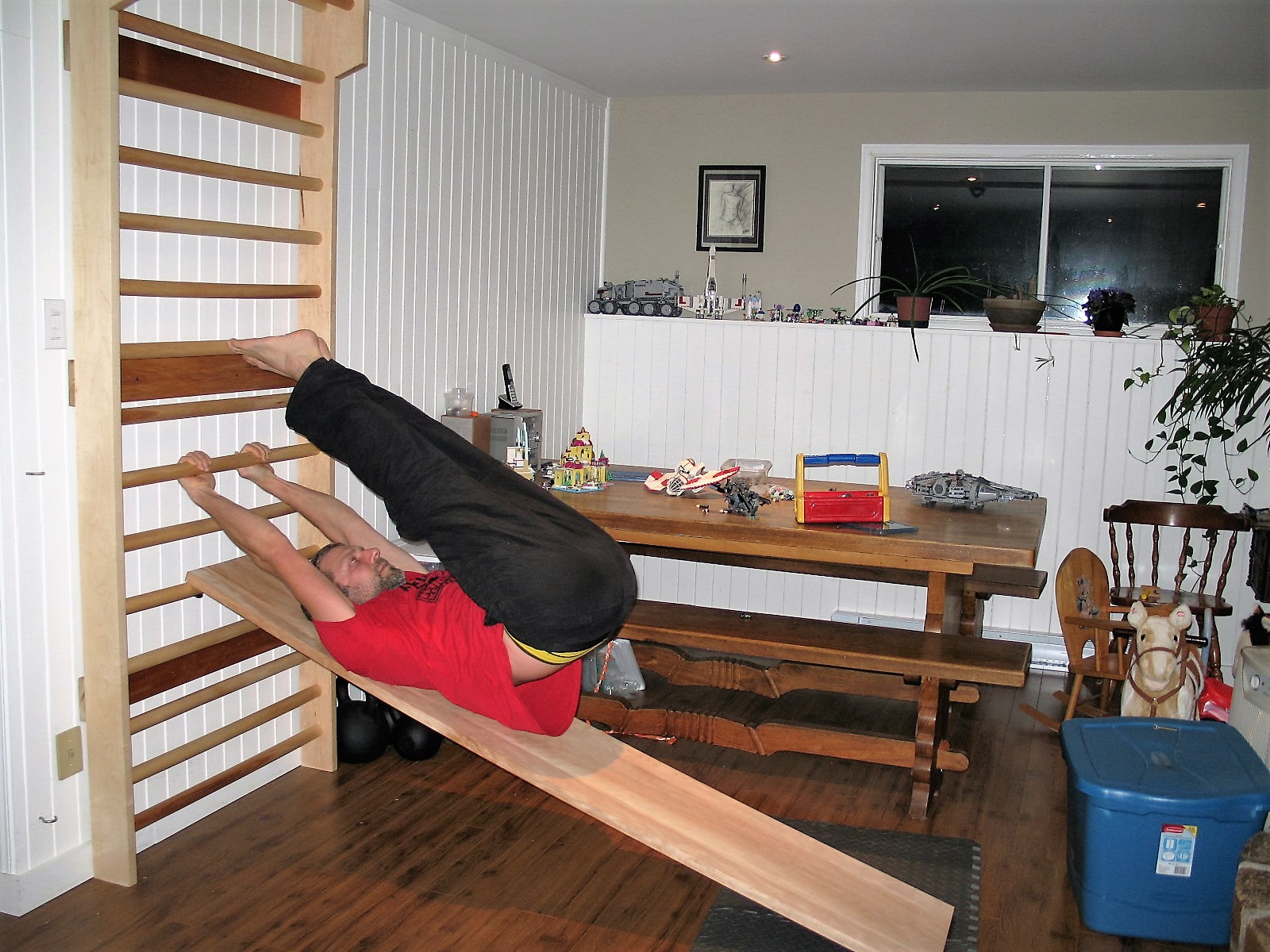

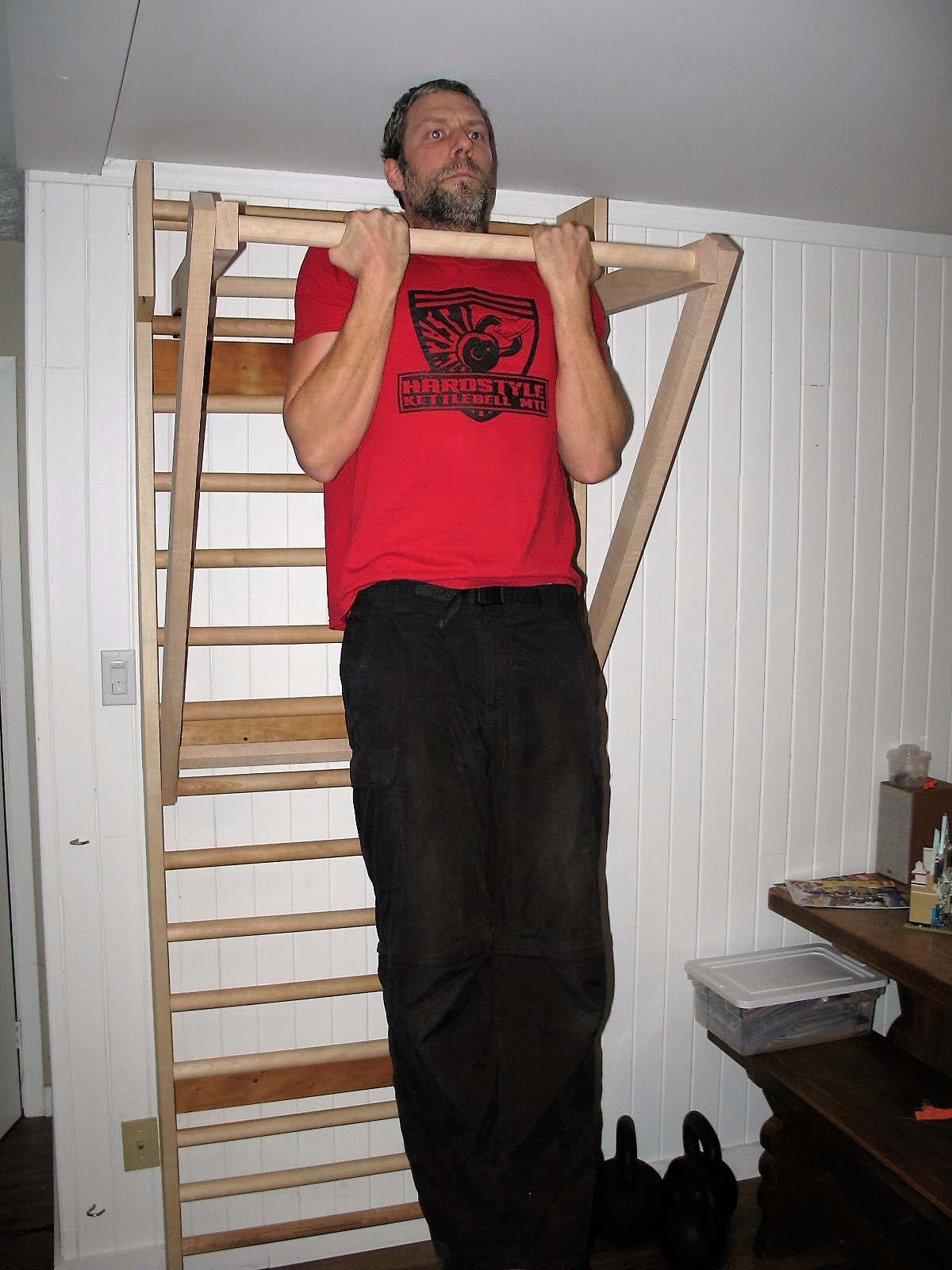

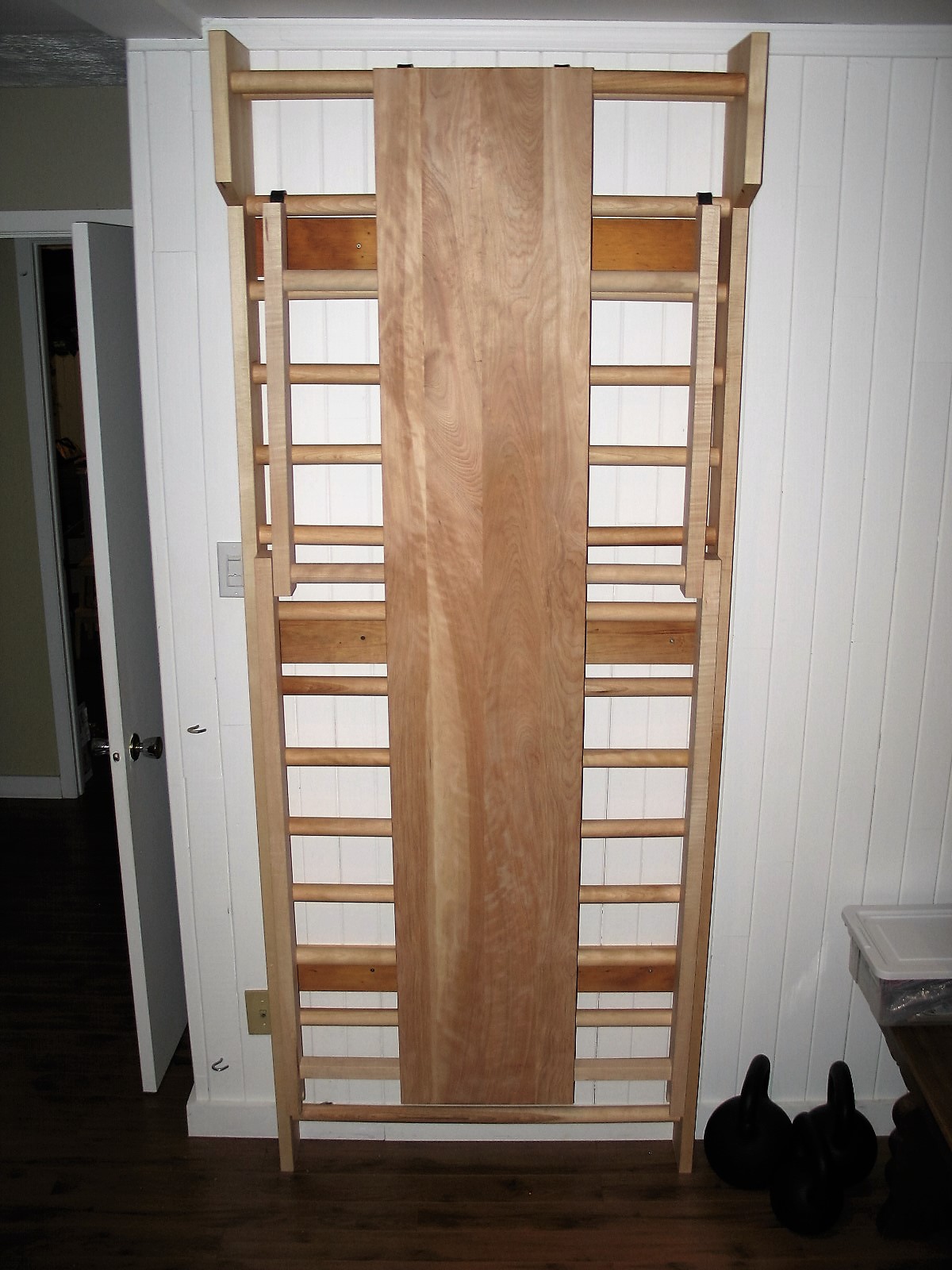

Hello, This is a set of stall bars I made with a board and pull-up/dip bar attachment. I plan on making a file with more pics, a cut list and detailed description if anyone is interested. You can see how it all neatly stacks away on the last picture. I use the board for HLR regressions, but i figure it can be used for tons of stuff.

Thanks for posting Benjamin!

Wow, wow, they are beautiful. What a great set up… I need a board like yours, what a good idea! Thanks for posting.

Great set up! Please come to my house and build one

Great idea for stallbars attachment. Adding to my list

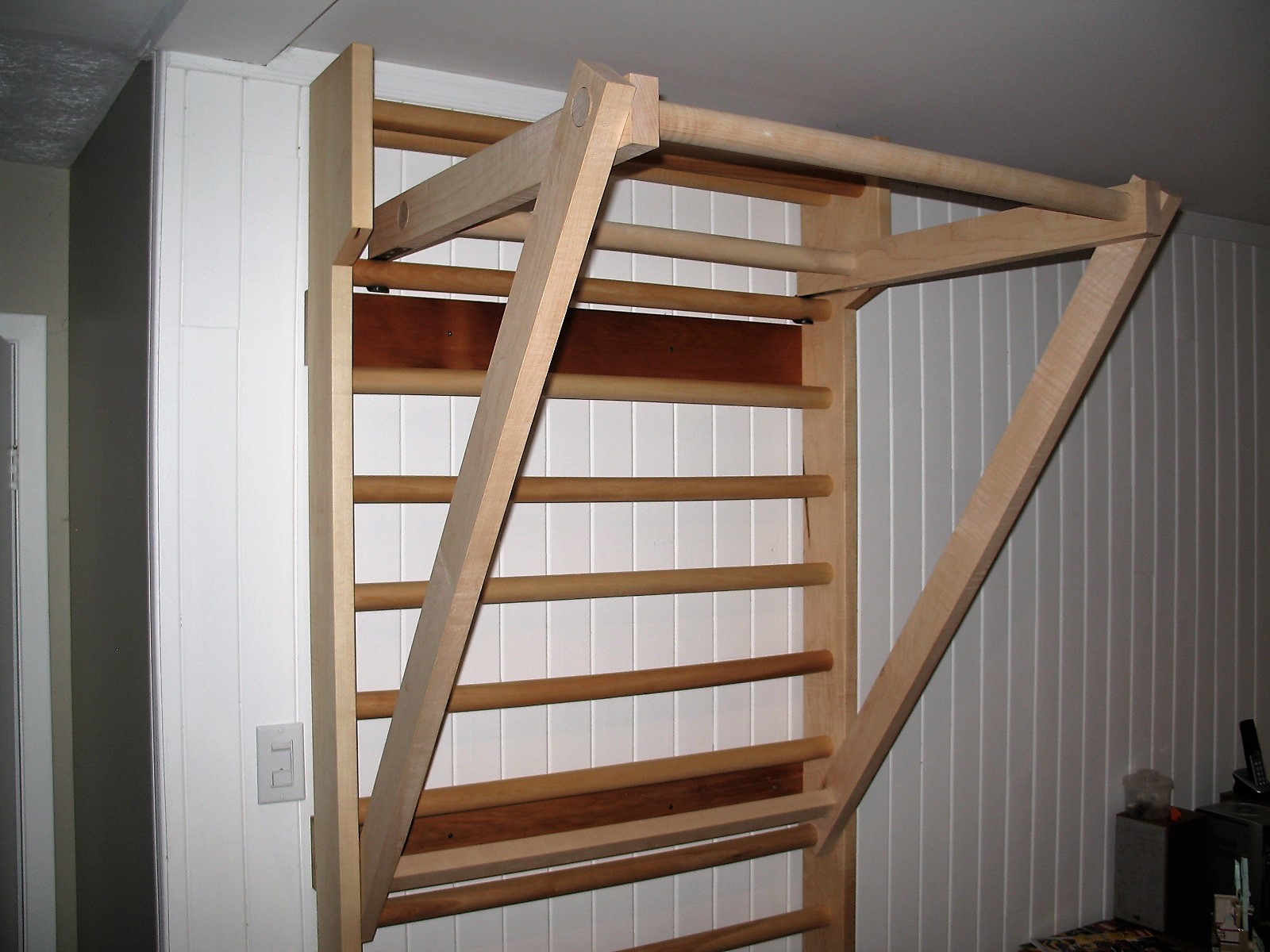

Thanks everyone, like I said I'm working on a file with all the construction details and a few step by step instructions. I'll list the few errors I made in the build too so that people don't make the same errors. I used maple for the uprights and birch dowels that I got from a supplier here in Quebec. The dowels were about 4,50$ CAN each and the uprights about 50$ CAN each, maple being a bit expensive. But I figured it was worthwhile to use solid lumber. The whole setup is only screwed, no glue. The dowels are screwed from behind with 3 inch screws that go all the way through the dowels. The offset one is screwed from the top. I had the metal hooks for the accessories made from a metalworker in my area, 10$ each. In all the project was a bit more expensive than anticipated but well worthwhile. Stay tuned for the file!

Hi Benjamin!

All what I love in one picture! Gymnastics, star wars and legos!! Hahahahaha,  . May the force be with you!

Looks awesome. Let me know when you have made the file with a more pics, a cut list and detailed description

beautiful setup.

Wow that's amazing. I really need to find a drill press and some lumber.

On ‎18‎/‎12‎/‎2016 at 6:20 PM, Antonio Alías Montoya said:

Hi Benjamin!

All what I love in one picture! Gymnastics, star wars and legos!! Hahahahaha,  . May the force be with you!

Haha! Those are my kids Legos, although I do love to play and build with them. They love my set up too, they hang and climb and slide on the board. Hopefully they'll develop a knack for gymnastics, they already take gymnastic classes for fun. No GST though, my son doesn't like when his teachers do strength related stuff too much, they haven't found a way to make it fun for him yet.

Any update on the file?

I'll get it done this week. Had someone else ask about it too. I'll get as much as I can in there.

Super cool set up, I want one!

Benjamin you are amazing can you post the plans?

Looking forward to seeing those plans Benjamin.

You did a great job on those bars

I'm halfway done with the file. Won't be plans, more like cut list, step by step instructions and some pictures (not of every step of the build but enough to figure out how I think).

That's great! Can't wait to see it!

We are waiting Benjamin!!!

I'm finished with the file, just don't know how to share it...

Here is the link for the file... Let me know what you think of it, I'd love to make it better if anyone has suggestions.

https://drive.google.com/file/d/0B-o0z72kReHCdjBITHFOazA5Rjg/view?usp=sharing

@Benjamin Renaud Thanks for the guide. Here is PDF and docx., just in case anyone can't open rtf. . I might try my hand at 3d modeling it but that could take a while.

https://drive.google.com/file/d/0B-vZ-jOxb9nCS25rYVcweGJTdms/view?usp=sharing&resourcekey=0-QnIkf7-HGy_Sp8Bo3LHPSQ

Looking forward to digging into this later today. Thanks for sharing this Benjamin!

@Dorian Brown, can you add pictures in the PDF file? If not all of them maybe just a few of the most important ones? I'm not too proficient anymore with most software, been out of the game for too long. I would of loved to have my document be better presented but all I had to work with was Microsoft word starter (not even the real Office...).

2 hours ago, Benjamin Renaud said:

@Dorian Brown, can you add pictures in the PDF file? If not all of them maybe just a few of the most important ones? I'm not too proficient anymore with most software, been out of the game for too long. I would of loved to have my document be better presented but all I had to work with was Microsoft word starter (not even the real Office...).



Np I tried to make it a pdf on my mac but it won't display the photos so I'll reupload it on my windows computer and see if I can help with the formating.
